2013/01/21

Federal Court of Malaysia, deploys 4ipnet WLAN Controller and Access Points

I. Case Overview

Federal Court of Malaysia, the highest court in the country, is located in the Palace of Justice, Putrajaya, Malaysia. Established during Malaysia’s independence in 1954, the court originally served as the Court of Judicature of Prince of Wales' Island. The current name, Federal Court of Malaysia, was given in 1994.


To provide a simpler network management system with comprehensive features, including limited access and usage times span control, the court would need 4ipnet WLAN controller working in conjectural with the existing system and 4ipnet access points.

II. Challenges

  • Incorporate 4ipnet WLAN with the existing network infrastructure and VLAN assignment
  • Integrating with NT Server which is not in local network
  • Separate service zones and time span control for different group of users
  • Supports high density user area

III. Network Solution

4ipnet has chosen WHG405 and EAP110, EAP757 for Federal Court of Malaysia to provide a reliable network infrastructure. Our WLAN controller allows
  • WHG405—GbE secure WLAN controller, manages up to 150 x 4ipnet AP in both local and wide areas AP management totally
  • EAP110—high speed (up to 300Mbps) enterprise access point with 802.11n/b/g 2.4GHz MIMO radio in IP50 dust-proof metal housin
  • EAP757—Concurrent dual-band wall jack access point with elegant casing designed to blend into a working/living environment

VI. Benefits

Role-based Access Control & Service Zone Function

Role-based access control and policy enforcement offer effective management of privileges for different user groups. Service Zone function partitions a physical network into up to 9 virtual networks, each with its own definable access control and group policy profiles.

Powerful Network Security Capabilities for Enterprise Applications

Diverse user authentication methods, including built-in Local and On-demand database; supports external authentication servers including POP3, LDAP, RADIUS, NT Domain, and SIP registrar. Role-based access control and policy enforcement offer effective management of privileges for different user groups. Service Zone function partitions a physical network into up to 9 virtual networks, each with its own definable access control and group policy profiles. Built-in DoS protection keeps malicious hackers from collapsing the network.
Centralized Management of Access Points

WHG controller provides an easy and manageable platform to monitor all 4ipnet access points. WHG controller provides a central point of administration and monitoring. Administrator can quickly find the associated AP per user ID, or to view specific AP’s status and connected client list. The AP management feature of 4ipnet is provided without license fee.

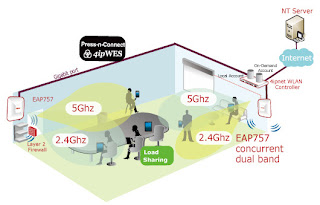

Concurrent Dual-band Wi-Fi Service

4ipnet EAP757 the concurrent dual-band wall/ceiling access point hat serves both 2.4 and 5.0 Ghz at the same time, provide best Wi-Fi connectivity in indoor high density areas (both 5 Ghz, both 2.4Ghz, or one 5Ghz one 2.4Ghz). Dual channel selection reduces possible RF interference from other access points or wireless devices, guarantees Wi-Fi stability and reliability. With growing number of smart devices utilizing 5Ghz capability, EAP757 would best meet the rising demand.

Wireless Layer 2 Firewall of Access Points

4ipnet’s Wireless Layer 2 Firewall monitors security breach for inter Virtual Access Point and wireless to wired attacks. It’s advanced features are designed to make your wireless network a safer and securer place to surf, chat and exchange data.
